V-MAG © Neodyme Magnets

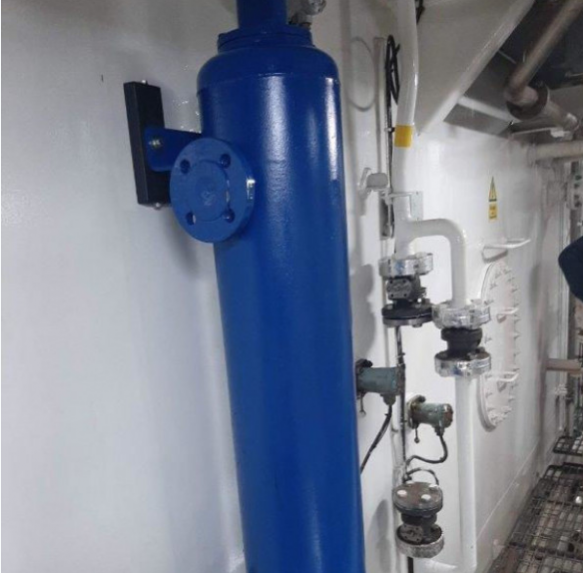

Drilling and welding the archaic and static install-method has finally found its replacement.

The V-Mag© multipurpose Neodyme magnet is the perfect product in an ever-changing environment. The V-Mag©'s are constructed using Neodyme magnets, which are the strongest permanent magnets available

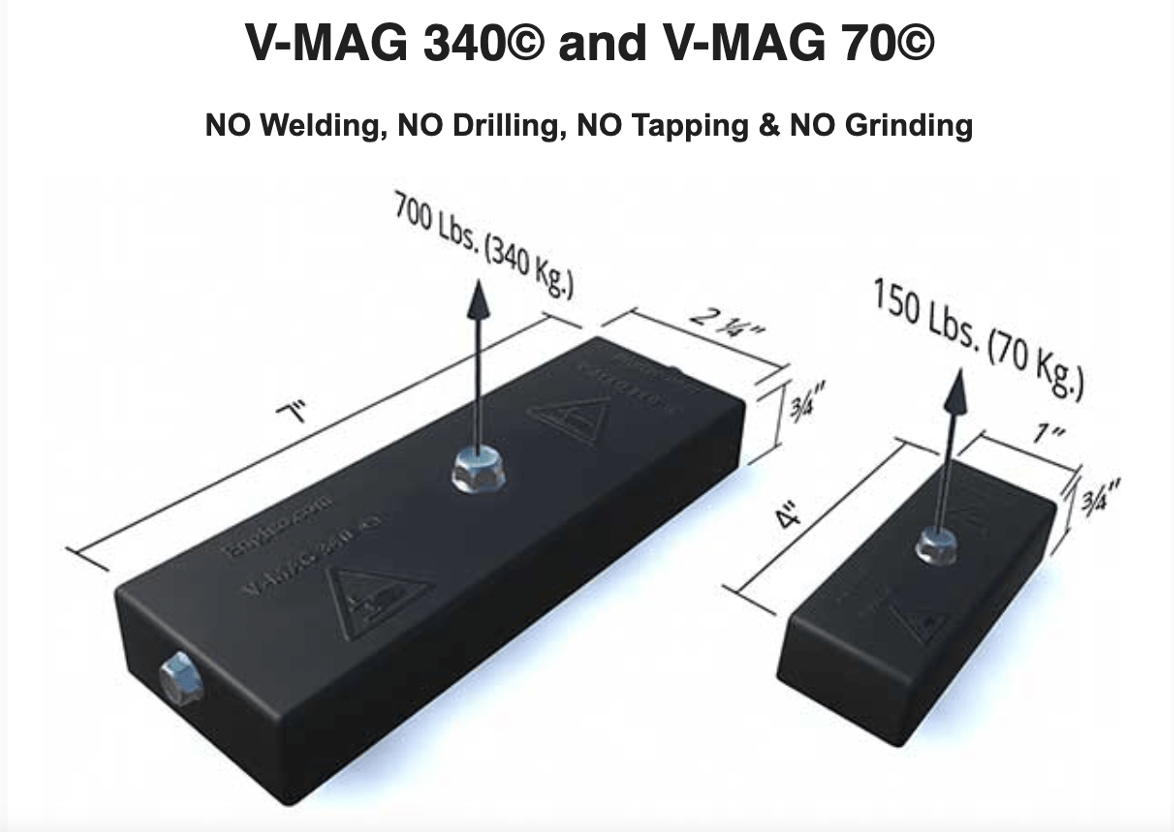

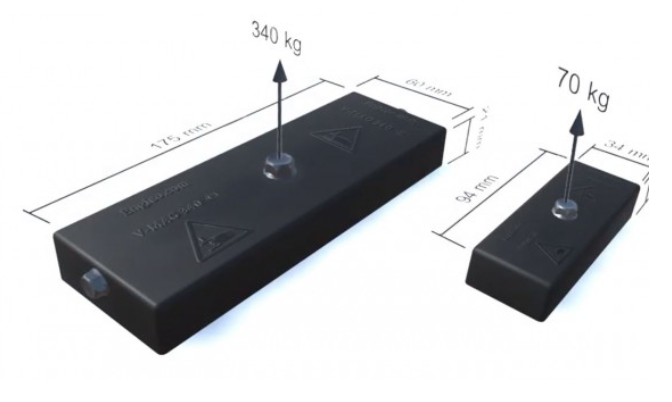

V-MAG© AVAILABLE IN TWO SIZES

V-MAG-70©



Size: 94x34x17mm
Lifting capacity: 70 kg
Premounted bolt: 1xM6x15mm
Weight: 0,3 kg

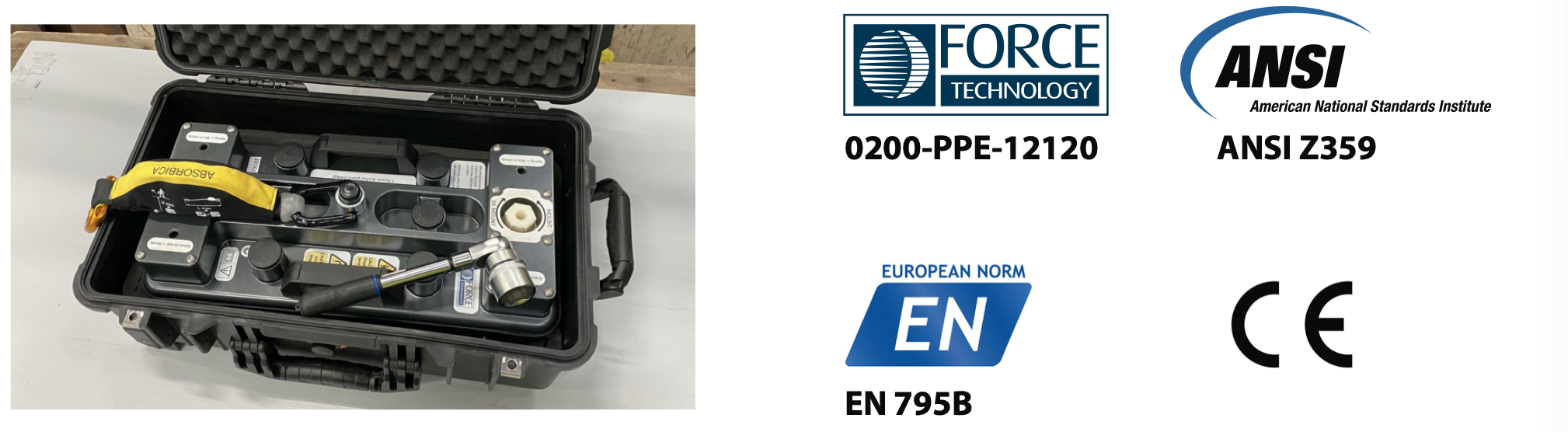

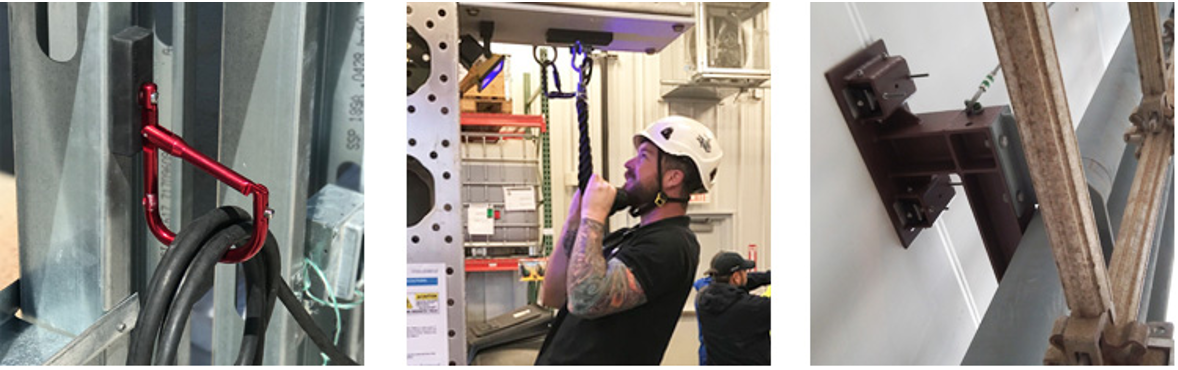

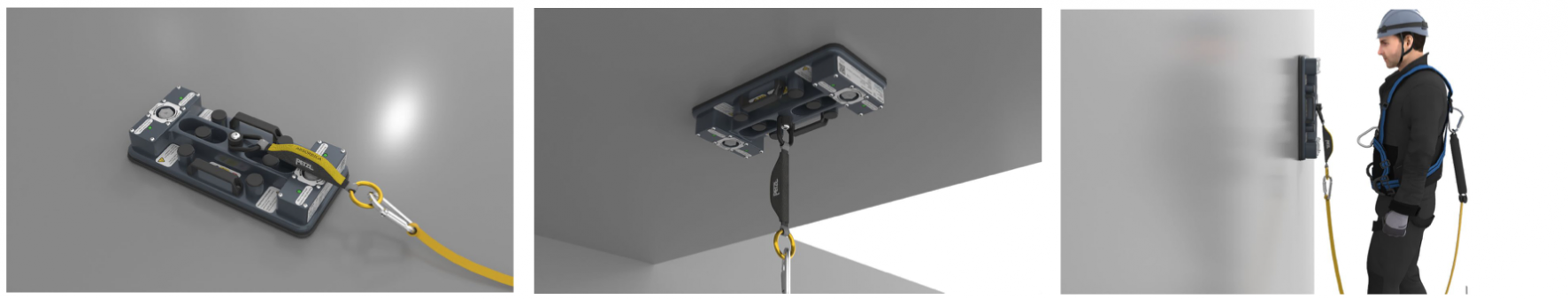

P-Tool by ENGISO is the fastest way to a safe, labor saving and effective fall protection solution when working on steel structures.
Patent Pending #21196058.8

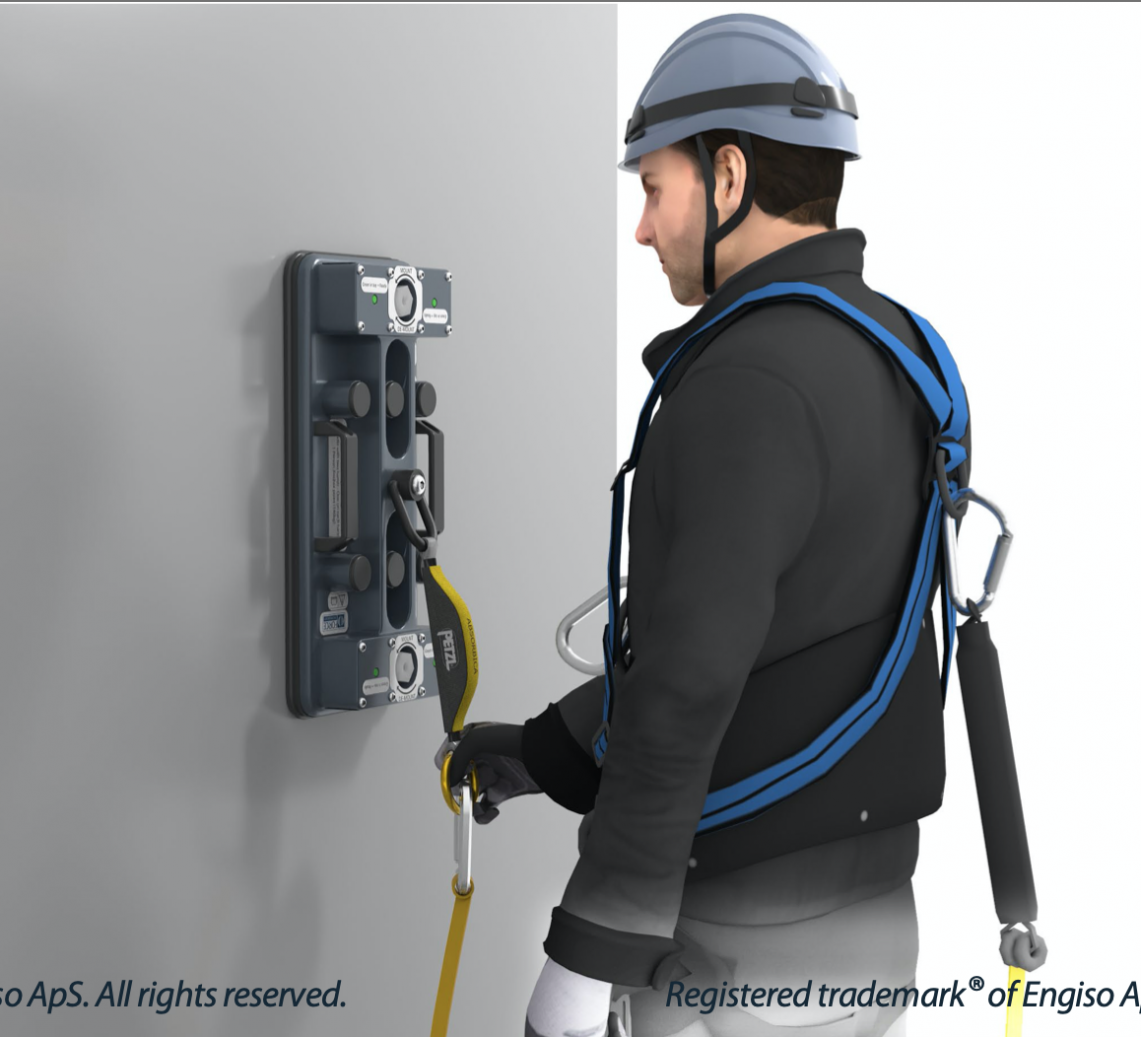

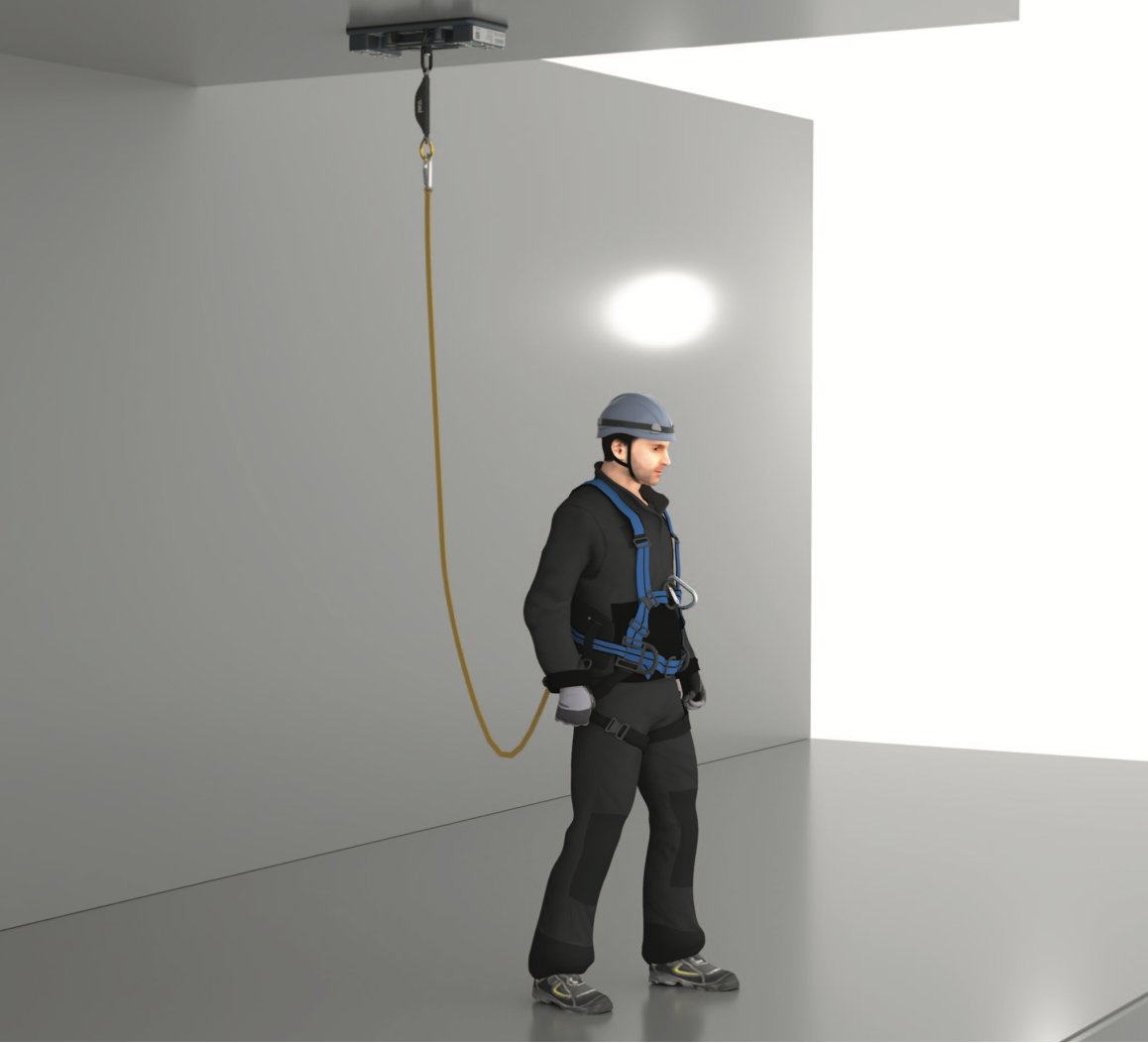

ENGISO P-TOOL is a magnetic Tie-off anchor point and fall restraint solutions utilized in markets during construction, commissioning, or maintenance. The P-Tool magnetic property eliminates the need for welding or other expensive tie-off solutions.
Self-contained and agile
A light weight and self- contained solution at only 15kg (30 Ibs.) installed on steel in any position (horizontal, Vertical or on a walking surface.)
Easy assembly and transport

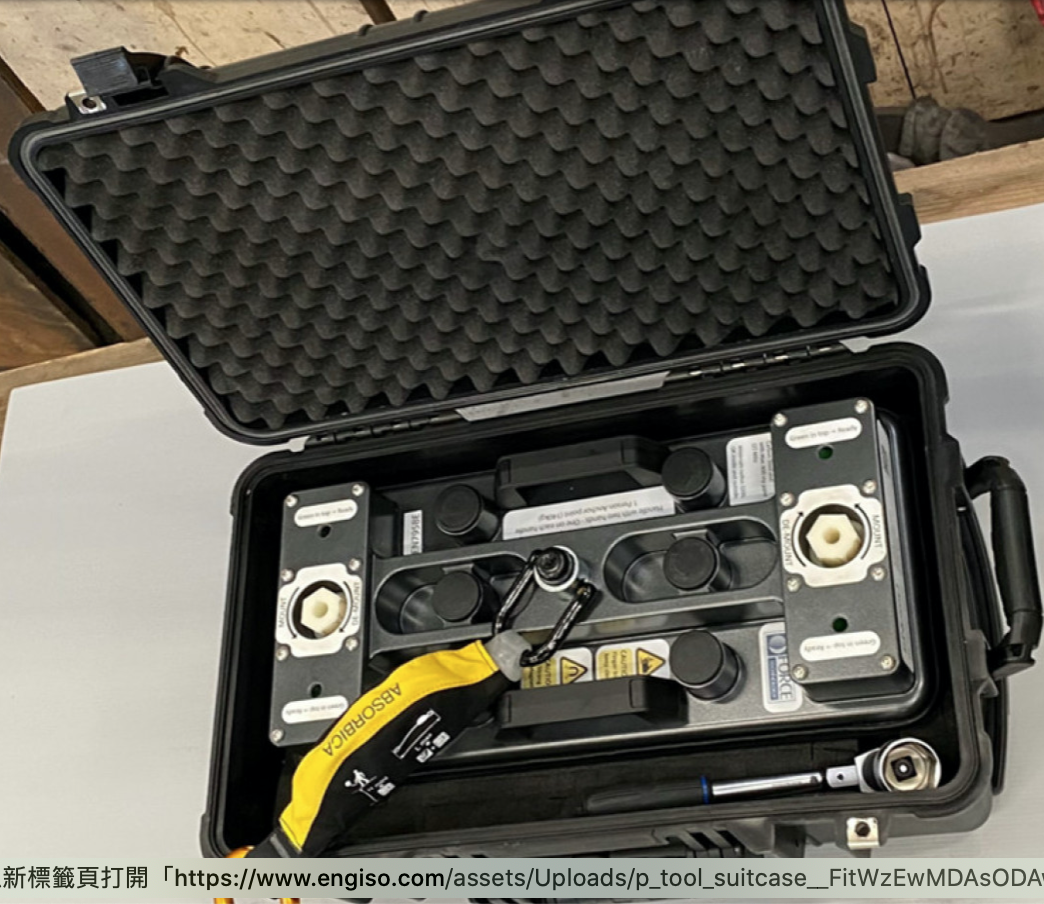

P-Tool © is inclusive of carrying case and is compact for confined spaces.
User friendly
Build-in indicators ensures visual indication that P-Tool has been correctly applied and ready foruse as personal tie-off anchor point.
Engiso® is an engineered solutions firm specializing in multipurpose magnets and industrial products for extreme environments. Engiso's high-value engineered solutions are expertly customized for the wind, telecommunications, maritime, oil and gas, and defense sectors. The company is a preferred provider of engineered solutions for a number of Fortune Global 500 clients and holds more than 25 patents worldwide.


Engiso® offers many types of manufactured solutions - transferable to wind power, telecommunications, maritime, oil and gas, and defense markets - that can be easily deployed into a current business, system or process. The company consists of Engineers, Project managers and Senior 3D specialists with several years know-how from the Wind Power Industry. ENGISO are specialists in Total-Cost and Cost-Out solutions as well as long term assignments requiring out-of-the-box thinking.  Always with an innovative approach, experience and knowhow.

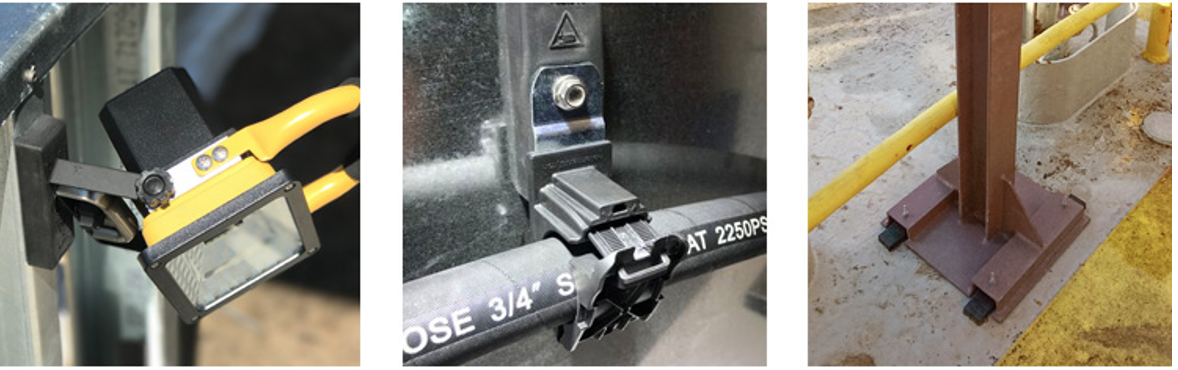

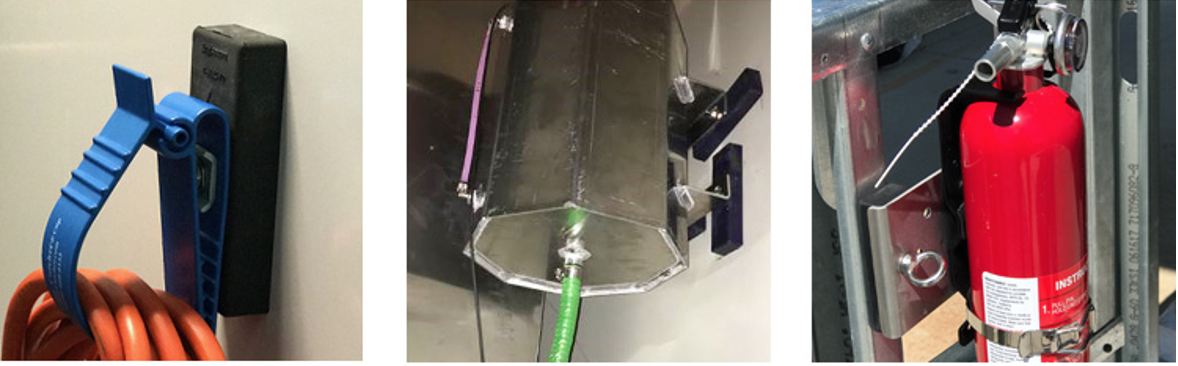

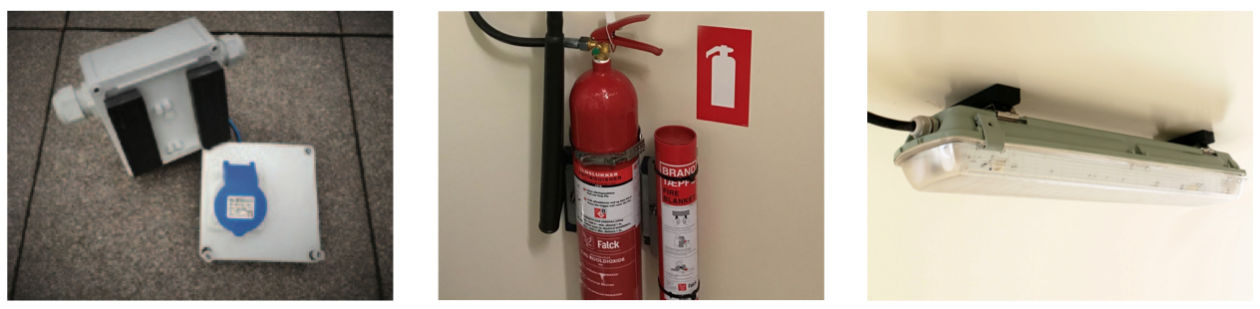

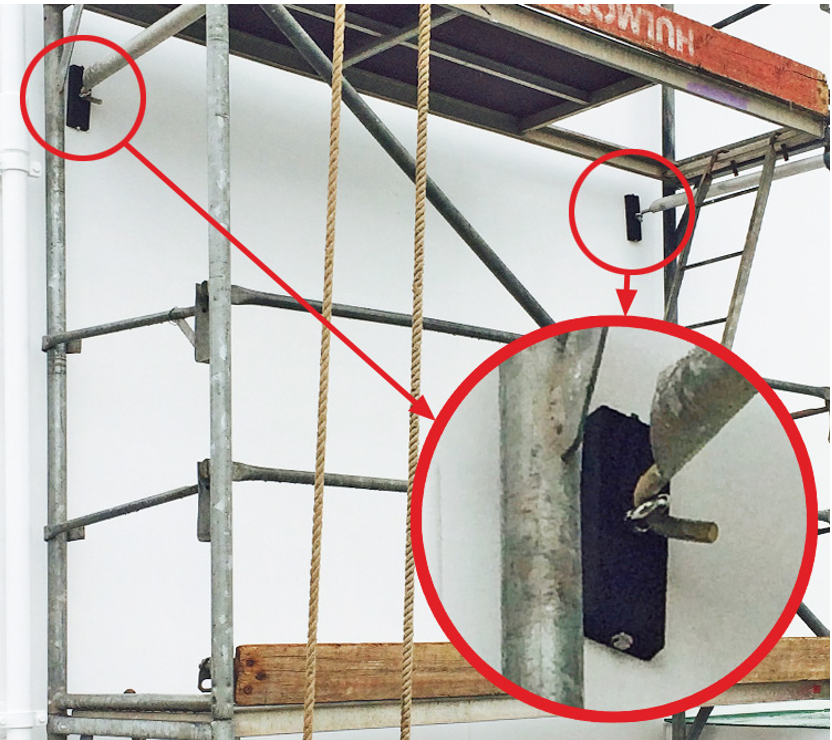

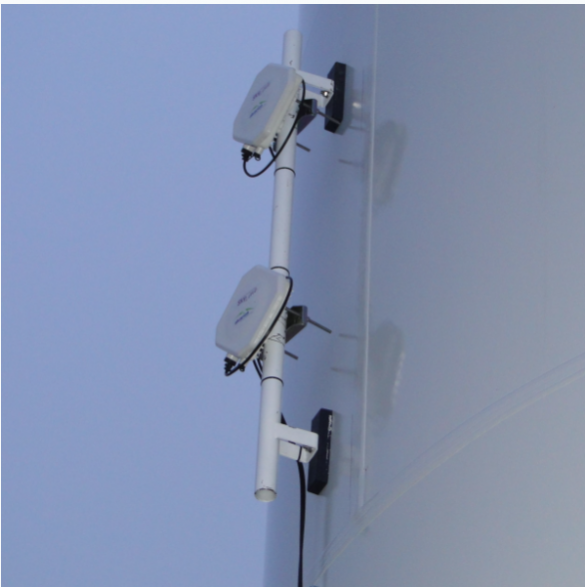

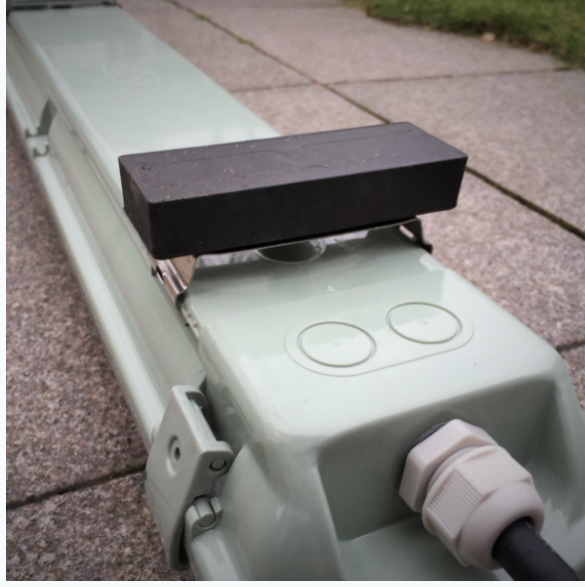

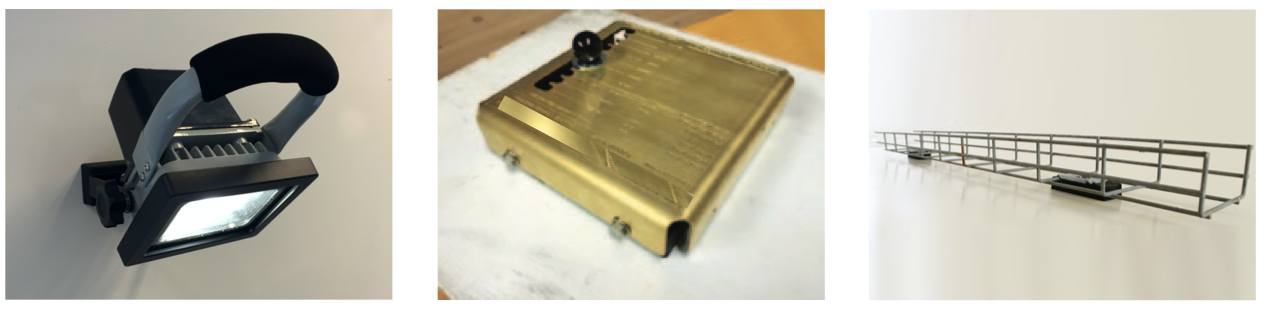

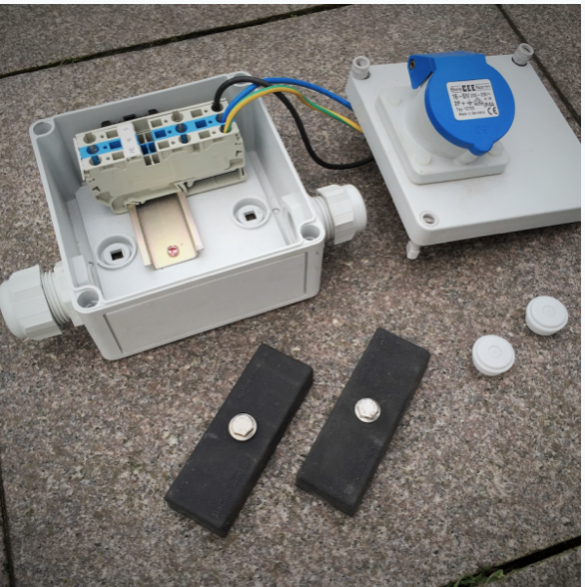

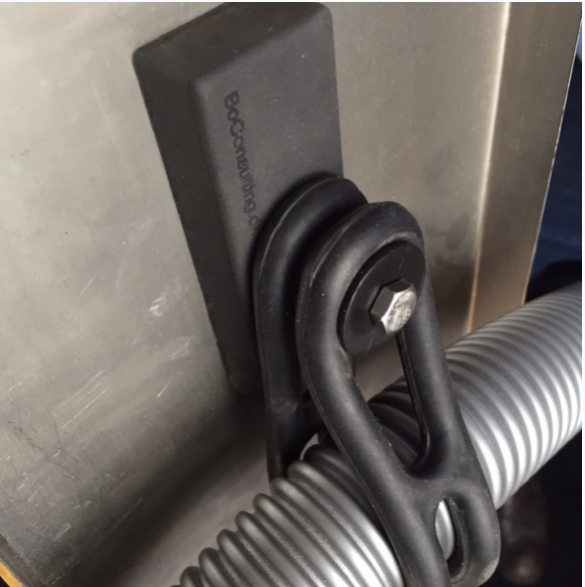

V-MAG © Neodyme Magnets



  • No welding needed
  • Can be removed or relocated without damaging the construction
  • No surface treatment
  • No painting required
  • Easily dismantled
  • Assembly without special tools
  • Wind- and weather-resistant
  • UV-resistant
  • Does not lose magnetic force over time





V-MAG-340©



Size: 175x60x21mm
Lifting capacity: 340 kg
Premounted Bolt: 1xM8x15mm & 2xM6x15mm
Weight: 1,3 kg

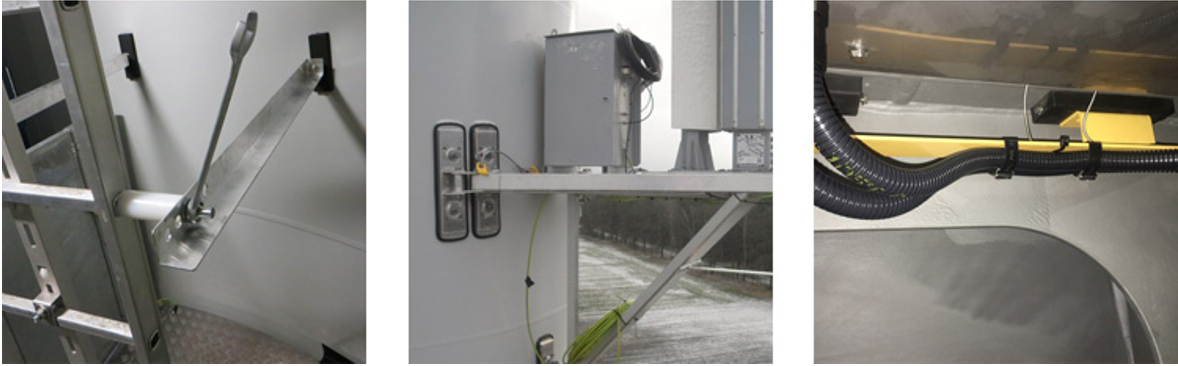

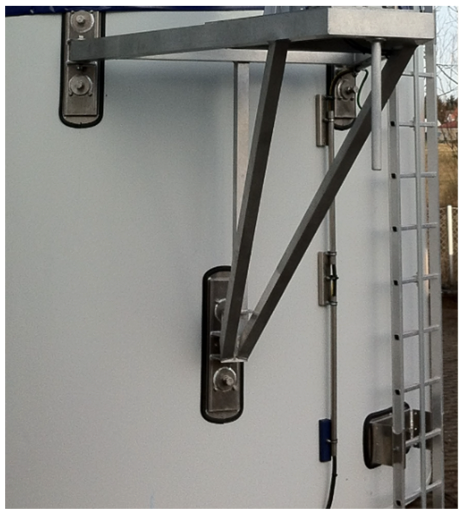

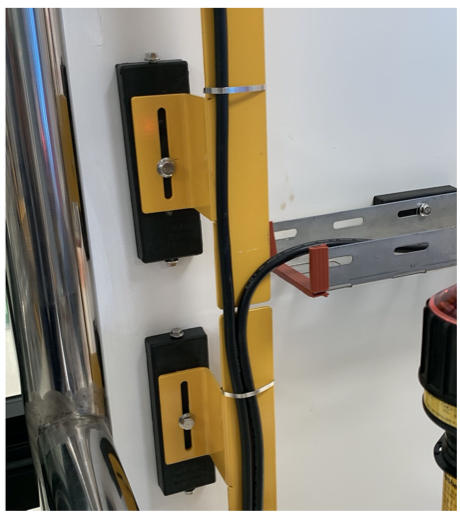

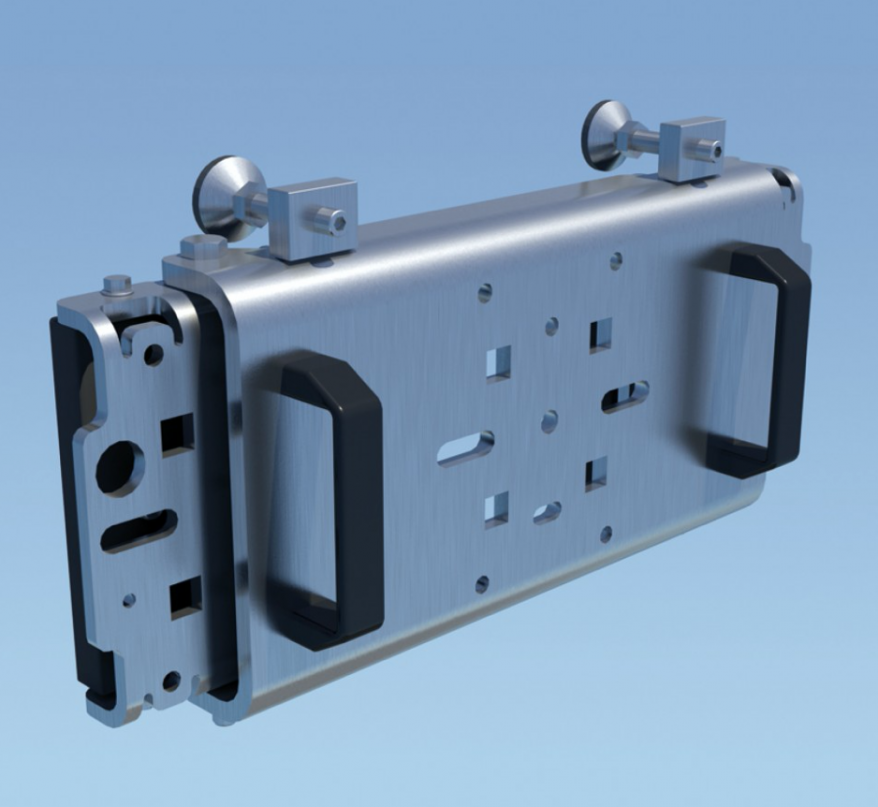

ENGISO TBR Brackets© multipurpose neodyme magnet key features :



  • Semi permanent - non destructive
  • Semi permanent, non-penetrating, non-destructive magnetic mechanical interphase bracket system.
  • Fast and efficient
  • TBR Brackets© are to be integrated between a ferrous steel surface and a product to be installed fast and efficient without having to weld.
  • Heavy duty solution
  • Up to perpendicular load 1360 kg and  -40°C to +80°C operation temperature.

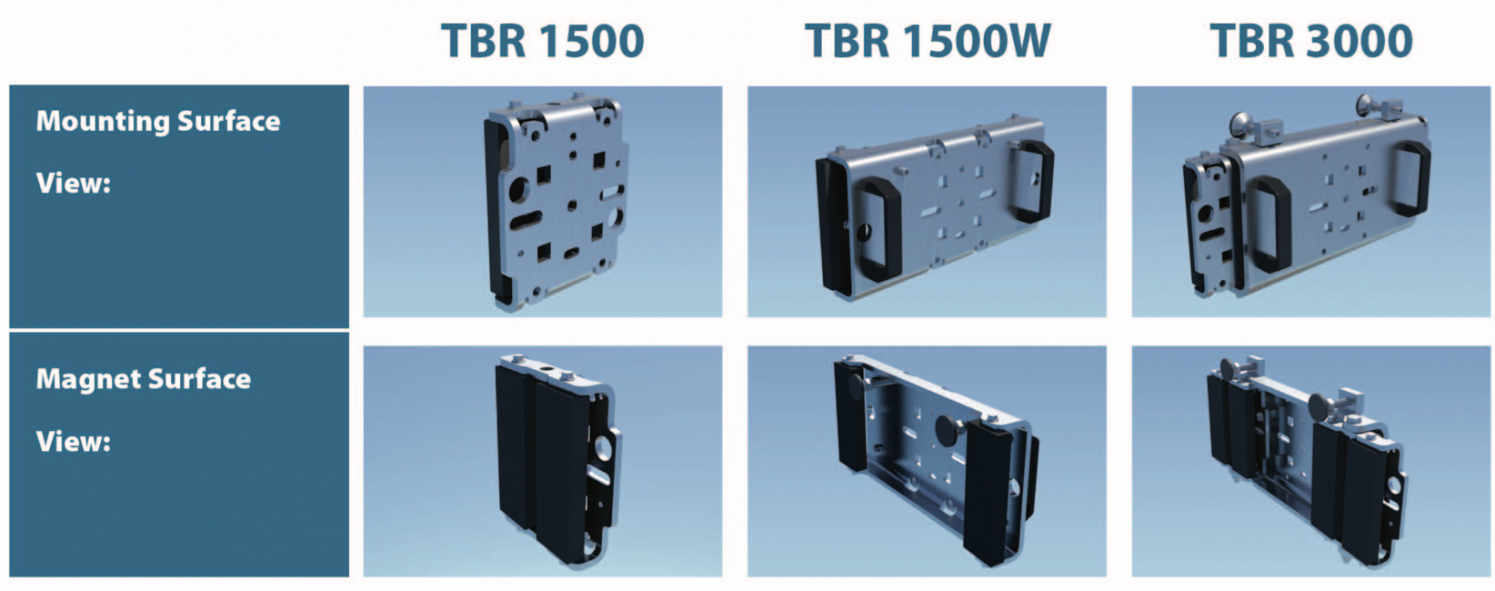

TBR © AVAILABLE IN THREE SIZES







TBR 1500

Heavy Duty Aluminum Bracket
with two Engiso V-Mag© 340.
Non EX. EPDM coated
Engiso N52 V-Mag© 340’s

Size:
L: 204 mm
W: 170 mm
H: 46 mm

MAX Load Capacity:
X - Horizontal:  100 kg
Y - Vertical: 100 kg
Z – Perpendicular: 680 kg










TBR 1500W

Heavy Duty Aluminum Bracket with two Engiso V-Mag© 340. Non EX. EPDM coated Engiso N52 V-Mag© 340’s

Size:
L: 204 mm
W: 410 mm
H: 96 mm

MAX Load Capacity:
X - Horizontal: 150 kg
Y - Vertical: 100 kg
Z – Perpendicular: 680 kg







TBR 3000

Heavy Duty Aluminum Bracket with four Engiso V-Mag© 340. Non EX. EPDM coated Engiso N52 V-Mag© 340’s

Size:
L: 265 mm
W: 520 mm
H: 106 mm

MAX Load Capacity:
X - Horizontal: 200 kg
Y - Vertical: 200 kg
Z – Perpendicular: 1360 kg




L-Tool Series

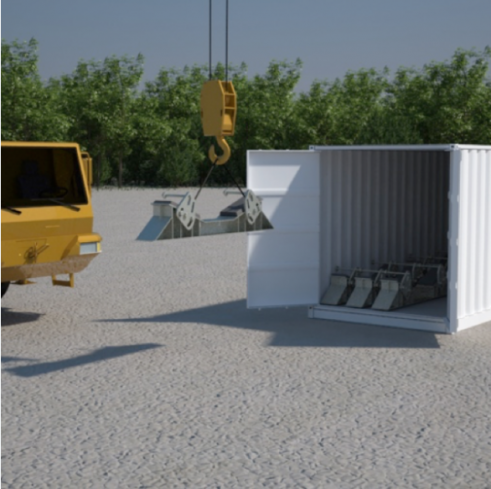

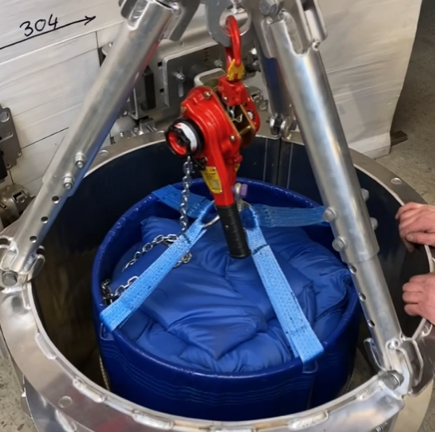

Material lifting tools. The L-Tool is a flexible material-lifting tool used during construction, commissioning or maintenance in different sectors.The design and function eliminates the need for welding or other expensive permanent solutions.

Key features

  • L-Tool from Engiso. A safe, labor saving, fast, and effective material-lifting solution.
  • Self-contained and flexible
  • A lightweight and self-contained solution that can be installed and used in any position (horizontally or vertically).
  • Easy assembly and transport
  • Can easily be transported and used in locations where access is limited. Can be used with existing slings and chain hoists available onsite.
  • Strong and lightweight
  • L-Tool from Engiso provides SWL up to 300 kg of lifting capacity and is only 6 kilograms in weight.
A-Tool Flange alignment

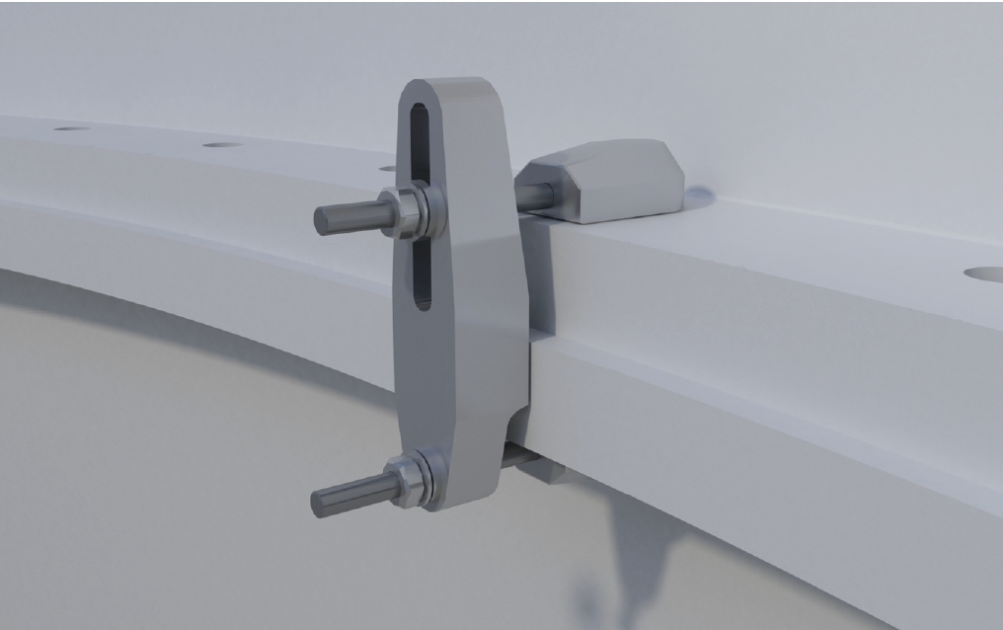

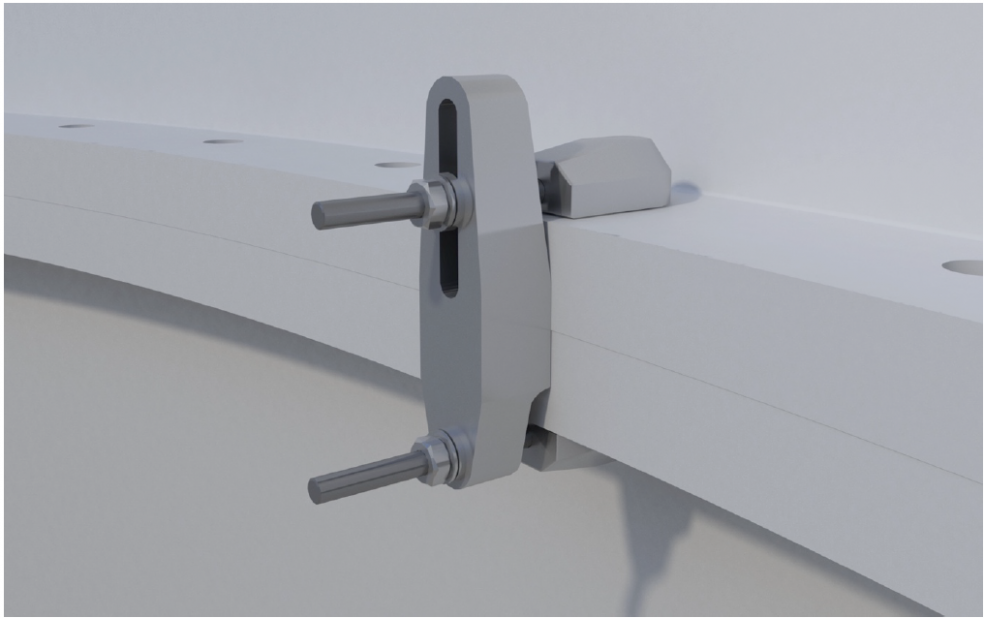

The A-TOOL is a flange alignment tool used to align or re-align flange joints during construction, commissioning or during routine maintenance.

Key features

  • A safe, labor-saving fast and effective solution for even the toughest flange alignment jobs.
  • The A-Tool from Engiso is a versatile tool that can be used on flanges regardless of flange thickness, depth, and bolt hole diameter.
  • No slings, hooks or lifting gear required. Can be installed and used in any position. Provides up to 20 tons of aligning power and is CE-Marked.
  • Easy to use - tailored to exact needs




Specifications :
  • Can be used on flanges regardless of flange thickness, depth, and bolt hole diameter. No special tools needed
  • Can be installed and used in any position (horizontally or vertically)
  • The A-TOOL is a lightweight, self-contained solution, which can be easily transported and used in remote locations, with limited access
  • The A-TOOL provides up to 20 tons of aligning power, and comes in a kit that includes transport case.
  • The A-TOOL only weighs 14 kg.
  • The A-TOOL is CE-Marked
  • Engiso provides many types of solutions that are easily and readily deployed into current designs, businesses, systems or processes.
  • They can be used immediately once installed or implemented.
  • In such cases, the purpose of using a turnkey solution is to avoid the hassle and headache of setting up your own in-house solution or resources. Engiso can deliver an “All inclusive” solution tailored to the customer’s exact needs or requests.

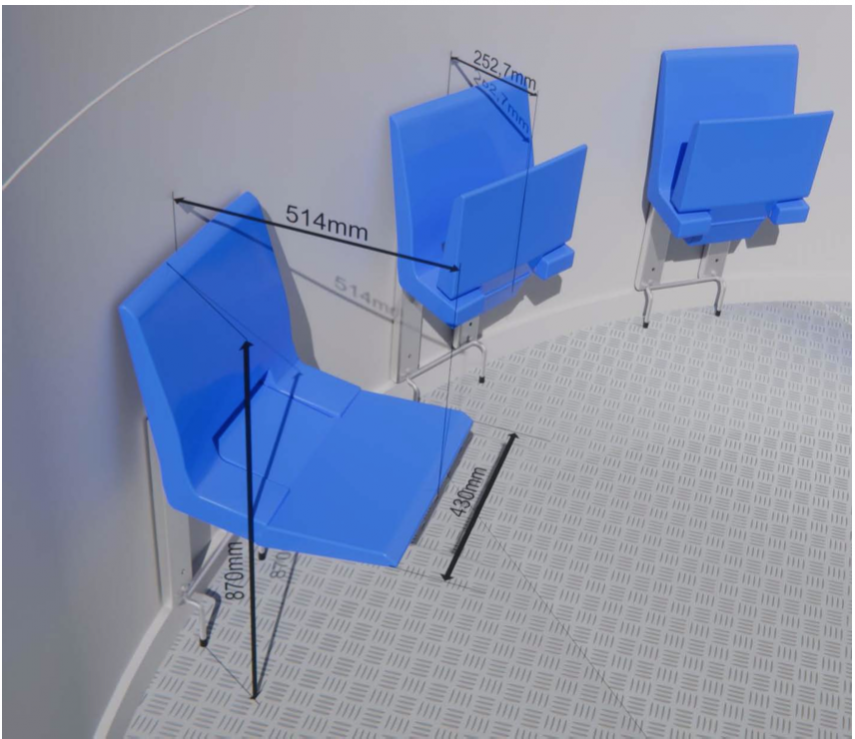

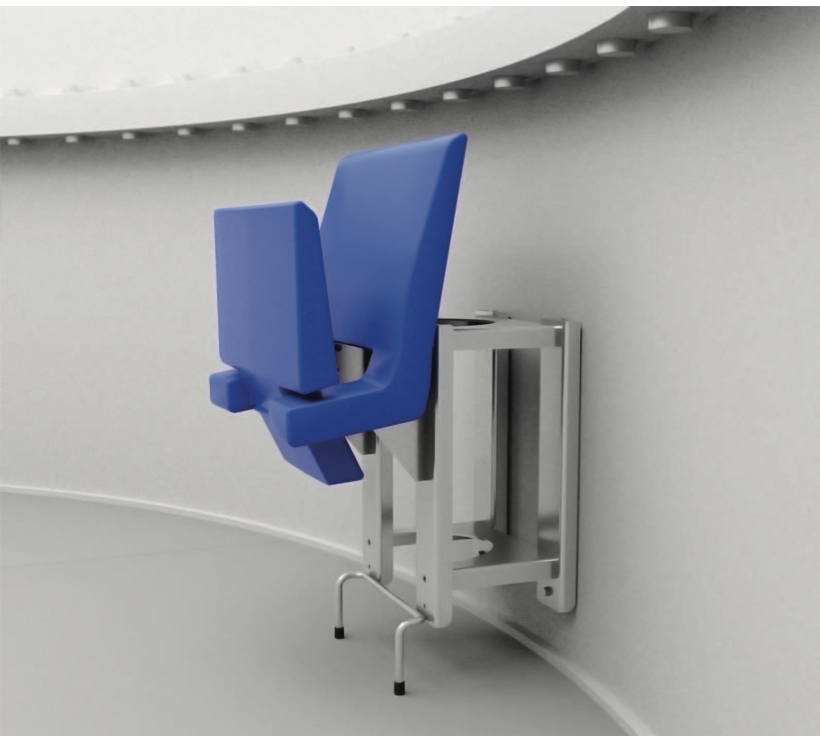

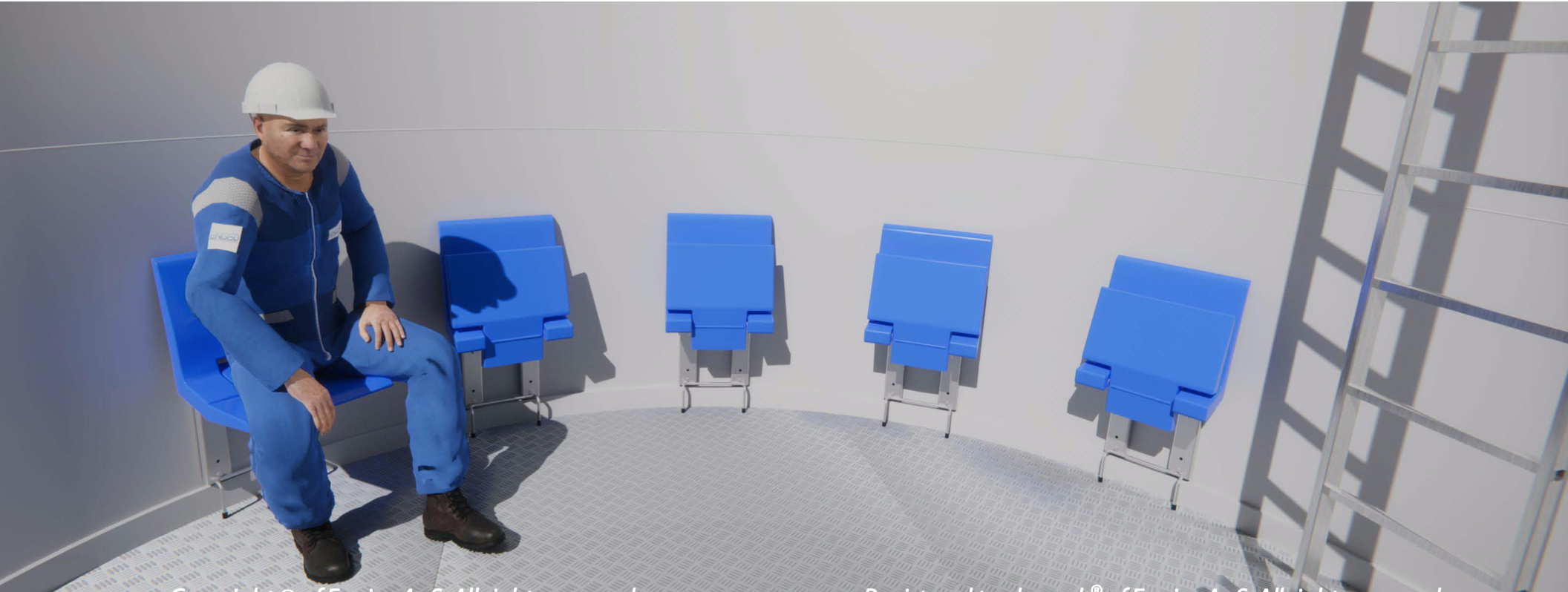

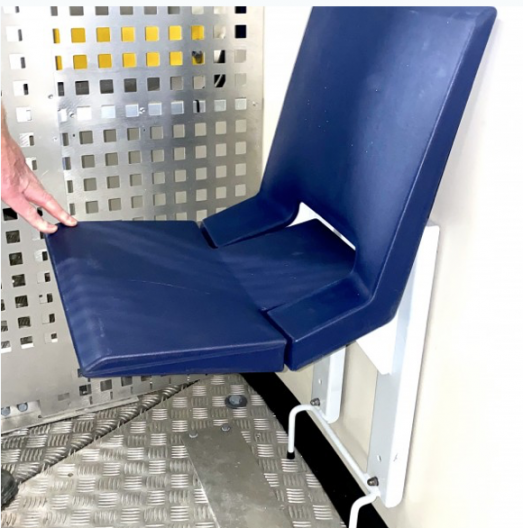

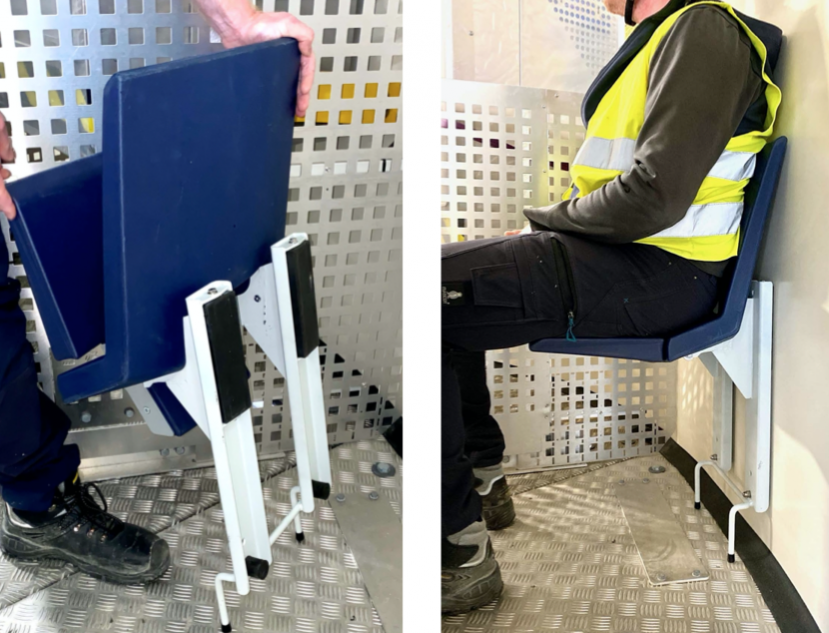

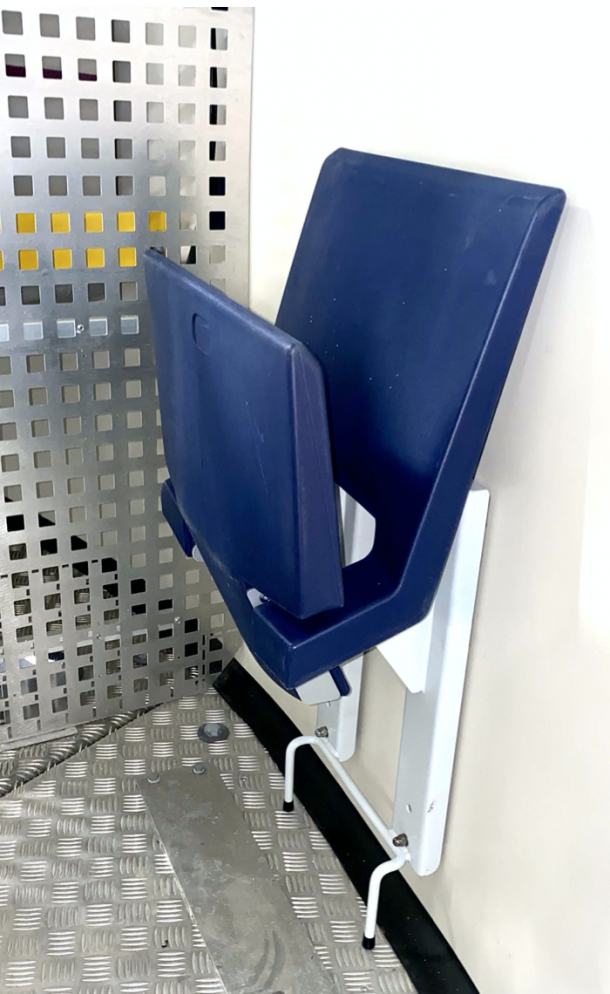

CHAIR FOR TOWER WALL ©

The Chair is designed by Engiso as an excelent ergonomic chair for easy installation on tower walls.

KEY FEATURES



  • Easy mounted with 2 pcs. of V-MAG 340© magnets.
  • Seat and back shells of recycled blow moulded HDPE with additives for UV colour-fastnessand fire resistance.
  • Durable and strong ergonomic design with high comfort.
  • Seat retraction using gravity (Counter weight) and 4 POM (polyacetal) bushings at joints ensure smooth trouble free operation.
  • Supporting structure made of galvanized steel

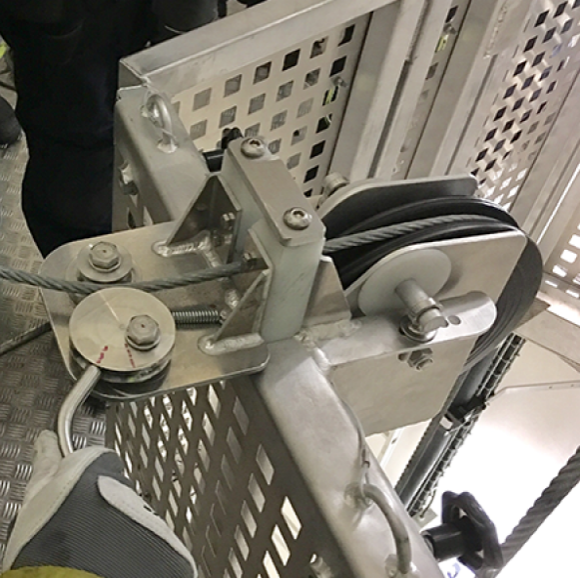

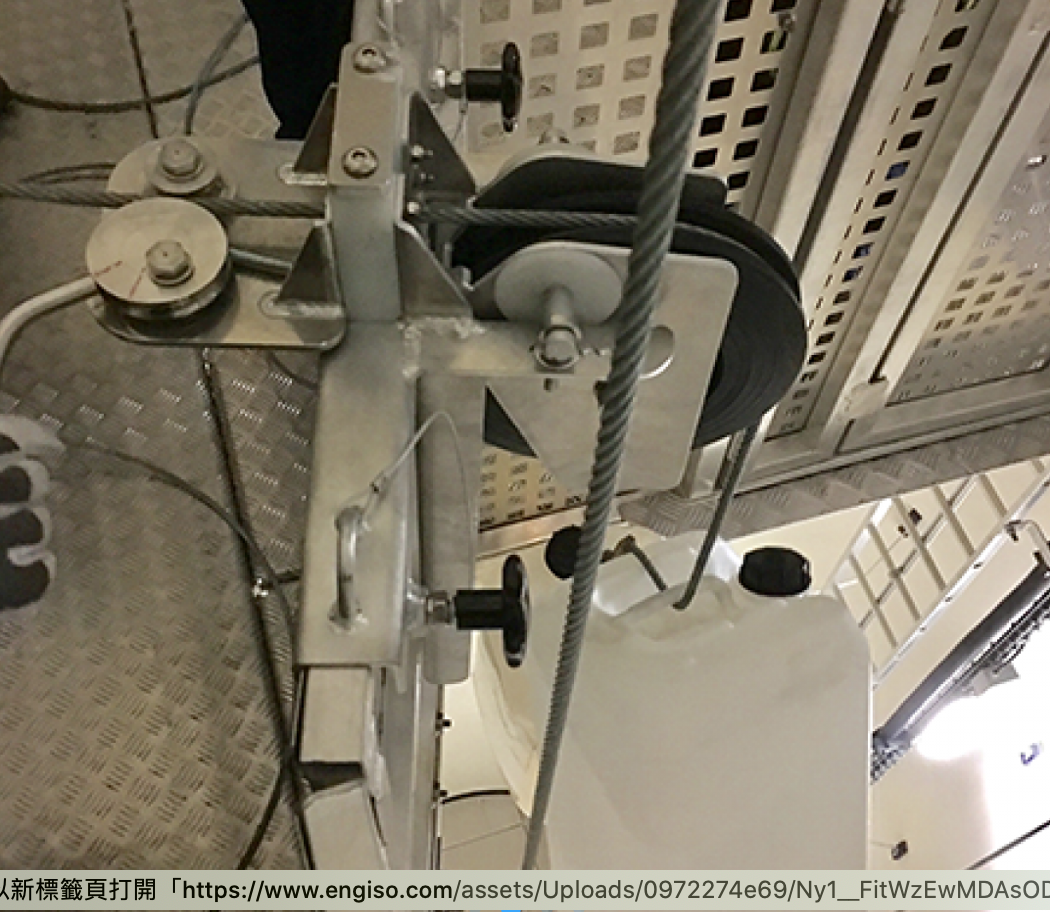

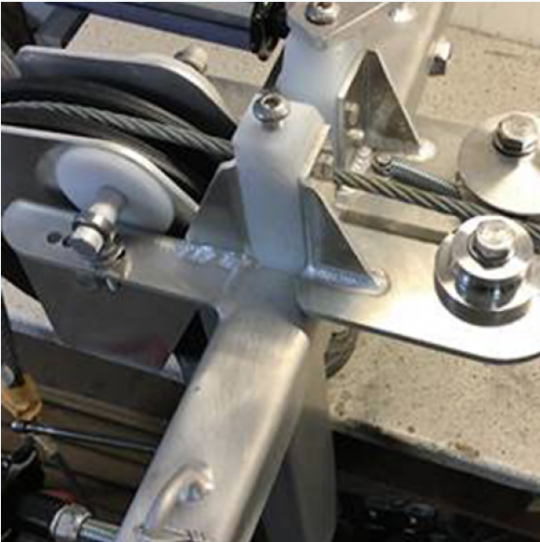

Second to none : ENGISO Cable/Wire Lowering Tool.


Safe installation of cable and wires in Wind Turbine Towers

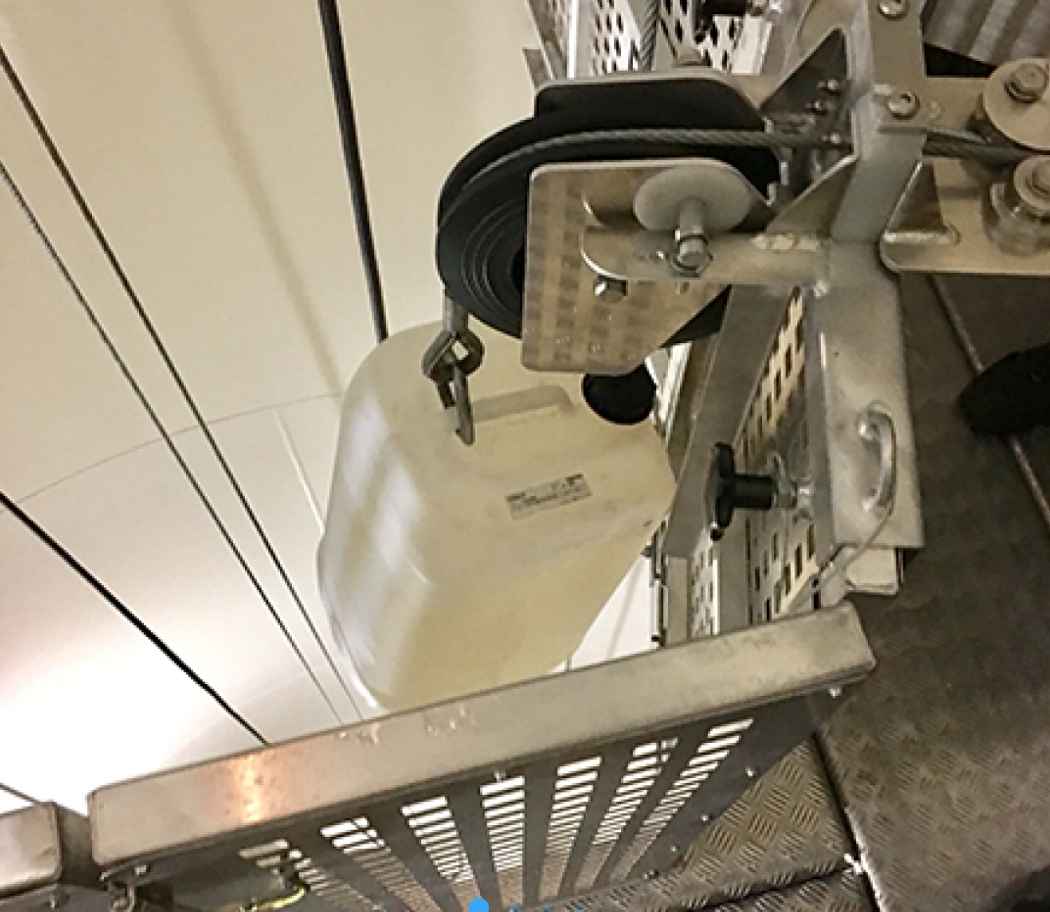

The Wire-Tool© from ENGISO is a tool used to lower down guide, traction or safety wires / power cables   installations in wind turbines during construction, commissioning or during routine maintenance.



Key features :
  • The Wire-Tool© is a safe, labor-saving fast, and effective solution for wire lowering jobs.
  • Lightweight and self-contained
  • Wire-Tool© is a lightweight and self-contained solution.
  • Wire-Tool© only weighs 6 kg.
  • A flexible tool
  • Wire-Tool© requires no slings, hooks or lifting gear and can be installed in any position on the lift fencing.
  • Easy transportation. Can be easily transported and used in remote locations with limited access and can be used on towers regardless of the tower variant.
  •
Specifications
  • The Wire-Tool© is a tool used to lower down guide, traction or safety wires for service lift installations in wind turbines during construction, commissioning or during routine maintenance. It is attached to the lift fencing where its most convenient during the work carried out on the platform.
  • The Wire Tool is a safe, labor-saving fast, and effective solution for wire lowering jobs. The Wire Tool´s design and function eliminates the need for external power sources.
